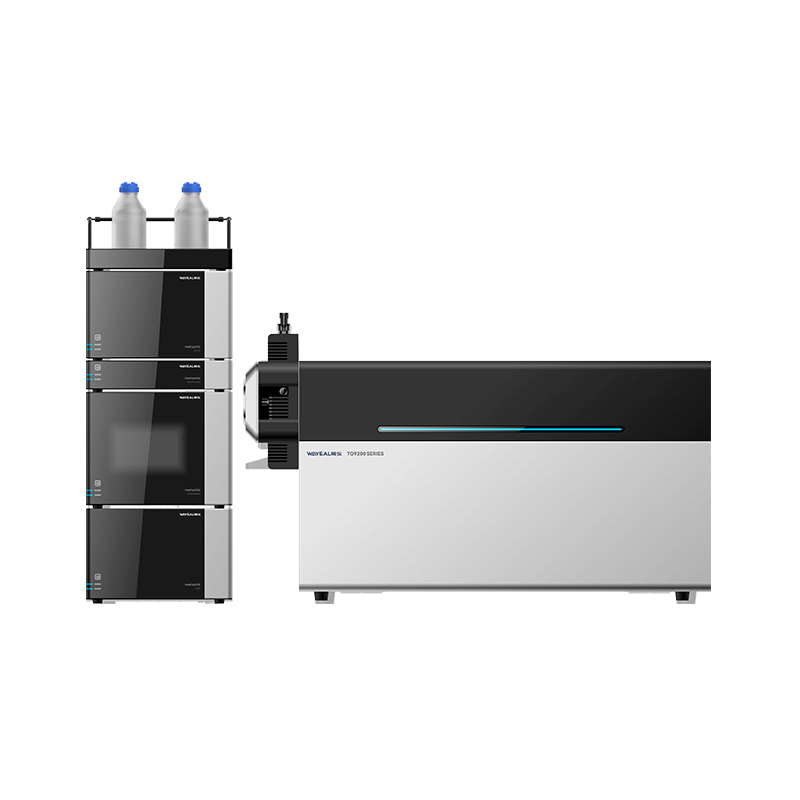

Spektrometer Massa Kromatografi Cair LC-MS Tingkat Lanjut dengan Ionisasi Elektrospray
| Product name: | Spectyrometer massa kromatografi cair | Ionization method: | Esi |
| Mass accuracy: | 0,1 da | Massstability: | 0.1 DA/24H |
| Limit of detection (rifampicin): | 0,1 pg | Sensitivity: | S: n> 20W: 1 pada kolom risperdal 1 pg |
| High Light: | Spektrometer massa LC-MS dengan ionisasi semprotan elektro,spektrometer massa kromatografi cair,Instrumen LC-MS berkinerja tinggi |
||
Parameter teknis dari TQ9200
|
Kondisi kerja |
|
|
Sumber daya kerja |
220V±22V, 50Hz±0,5Hz |
|
Suhu lingkungan |
15-30°C |
|
Kelembaban relatif |
tidak lebih dari 80% |
|
UHPLC |
|
|
Mode penggerak pompa |
pompa motor linier |
|
Modus gradien |
biner (4-waysolvent) |
|
Jangkauan pengaturan laju aliran |
00,001-2.000 mL/menit |
|
Inkrement pengaturan arus |
00,001 mL/menit |
|
Tekanan operasi maksimum |
150MPa |
|
Pengurangan gas |
Desgasing online 5 saluran |
|
Autosampler |
|
|
Tekanan tahan maksimum |
150MPa |
|
Kisaran volume pengambilan sampel |
0.1-20.0μL (50μL opsional) |
|
Linearitas |
R≥0.9999 |
|
Kontaminasi silang |
< 0,004 % |
|
Jumlah sampel |
108 (2*54,2 ml), mendukung 96 pelat sumur dangkal, 96 pelat sumur dalam, 384 |
|
Jangkauan pengaturan suhu |
4.0~40.0 °C (pembekuan opsional) |
|
Stabilitas suhu |
± 2 °C |
|
Tingkat pakan |
12s |
|
Ruang suhu kolom |
|
|
Jangkauan pengaturan suhu |
200,0-90,0 °C |
|
Stabilitas suhu |
± 0,02 °C/jam |
|
Kesalahan pengaturan nilai suhu |
± 0,1 °C |
|

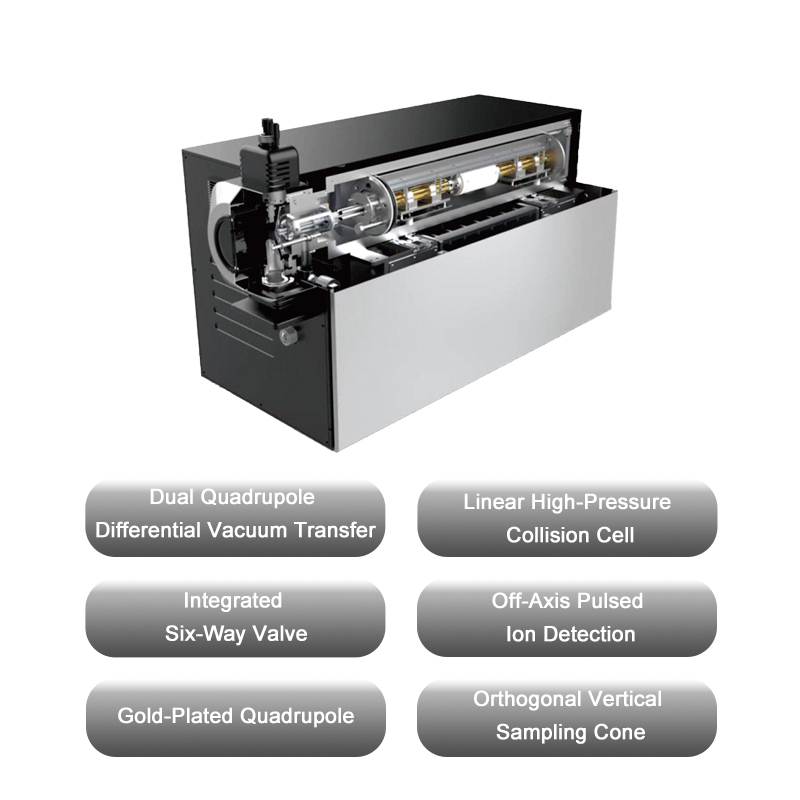

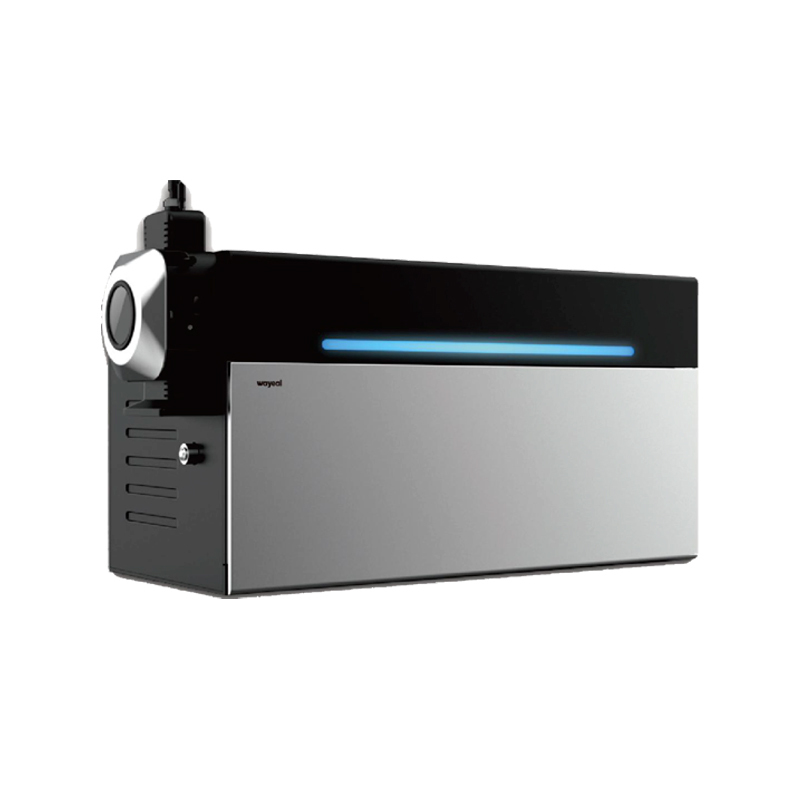

Spektrometer massa triple quadrupole |
|
|
Jangkauan analisis massa |
5-1250Da (standar); 5-2000Da (opsional) |
|
Kecepatan pemindaian |
12000 Da/s |
|
Resolusi massa |
0.6-0.8 Da (609 puncak massa) |
|
Jangkauan linearitas |
≥1E4 |
|
Keakuratan massa |
0.1 Da |
|
Stabilitas massa |
0.1 Da/24h |
|
Batas deteksi (rifampicin) |
0.1pg |
|
Sensitivitas |
S:N >20w:1 pada kolom Risperdal 1pg |
|
Indikator sistem |
|
|
Reproduksi Kualitatif |
RSD ≤ 5% |
|
Reproduksi kuantitatif |
RSD ≤ 5% |
Aplikasi Spektrometer Massa Kromatografi Cair
Industri Kimia & Bahan
1. Bahan Kimia halus
Analisis kemurnian dan kekotoran zat surfaktan, bahan perantara pewarna.
2. Aditif polimer
Antioksidan, UV stabilisator (misalnya, BHT, Irganox seri).
