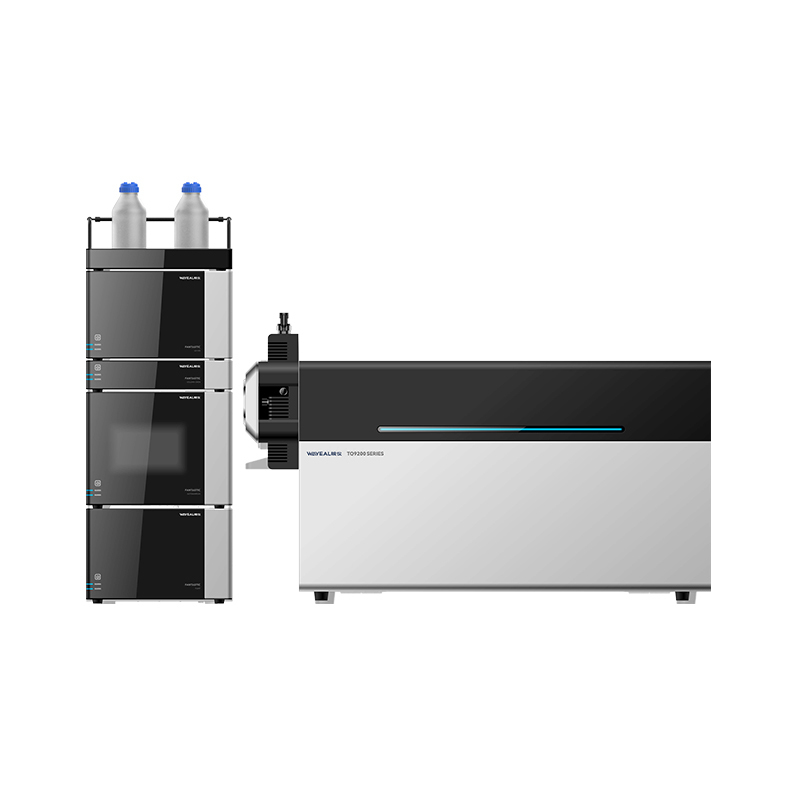

Spektrometer Kromatografi Cair Massa TQ9200 Resolusi Tinggi LCMS 220V
| Product name: | Spektrometer massa kromatografi cair TQ9200 | Working power supply: | 220V ± 22V, 50Hz ± 0,5Hz |
| Maximumwithstand pressure: | 150MPa | Linearity: | R≥0.9999 |
| Cross-contamination: | <0,004 % | Mass accuracy: | 0,1 da |
| High Light: | Spektrometer LCMS Resolusi Tinggi 220V,Spektrometer massa kromatografi cair TQ9200,Instrumen LCMS dengan resolusi tinggi |
||
Parameter Teknis TQ9200
| Kondisi Kerja | |
| Catu daya kerja | 220V±22V, 50Hz±0.5Hz |
| Suhu ambien | 15-30°C |
| Kelembaban relatif | tidak lebih dari 80% |
| UHPLC | |
| Mode penggerak pompa | pompa motor linier |
| Mode gradien | biner (4-jalur pelarut) |
| Rentang pengaturan laju aliran | 0.001-2.000mL/min |
| Kenaikan pengaturan laju aliran | 0.001mL/min |
| Tekanan operasi maksimum | 150MPa |
| Degassing | Degassing online 5-saluran |
| Autosampler | |
| Tekanan tahan maksimum | 150MPa |
| Rentang volume sampel | 0.1-20.0μL (opsi 50μL) |
| Linearitas | R≥0.9999 |
| Kontaminasi silang | <0.004 % |
| Jumlah sampel | 108 (2*54, 2 ml), mendukung pelat sumur dangkal 96, pelat sumur dalam 96, pelat sumur 384 |
| Rentang pengaturan suhu | 4.0~40.0 ℃ (pendinginan opsional) |
| Stabilitas suhu | ± 2 ℃ |
| Laju umpan | 12s |
| Ruang suhu kolom | |
| Rentang pengaturan suhu | 20.0-90.0 ℃ |
| Stabilitas suhu | ±0.02 ℃/h |
| Kesalahan nilai pengaturan suhu | ± 0.1 ℃ |
| Spektrometer massa tripel kuadrupul | |
| Rentang analisis massa | 5-1250Da(Standar); 5-2000Da(Opsional) |
| Kecepatan pemindaian | 12000 Da/s |
| Resolusi massa | 0.6-0.8 Da (puncak massa 609) |
| Rentang linearitas | ≥1E4 |
| Akurasi massa | 0.1 Da |
| Stabilitas massa | 0.1 Da/24j |
| Batas deteksi (rifampisin) | 0.1pg |
| Sensitivitas | S:N >20w:1 pada kolom Risperdal 1pg |
| Indikator sistem | |
| Reproduktibilitas kualitatif | RSD≤5% |
| Reproduktibilitas kuantitatif | RSD≤5% |
Aplikasi LCMS
Industri Kosmetik
Pemantauan Bahan Berbahaya
Zat terlarang (misalnya, hidrokuinon, senyawa merkuri).
Pengawet (misalnya, paraben).
