Mesin Kromatografi HPLC Instrumen Kromatografi Cairan 220V
| Product name: | Instrumen Kromatografi Cair Kinerja Tinggi | Color: | Putih, Biru |
| Qualitative Repeatability: | ≤ 0,2% | Quantitative Repeatability: | ≤ 0,4% |
| Flow rate range: | 0,0001-10.000mL/menit | Detector: | UVD/DAD/FLD/ELSD/RID |
| High Light: | Instrumen Kromatografi Cair UPLC,Mesin Instrumen Kromatografi Cair,kromatografi cair kinerja ultra uplc |
||

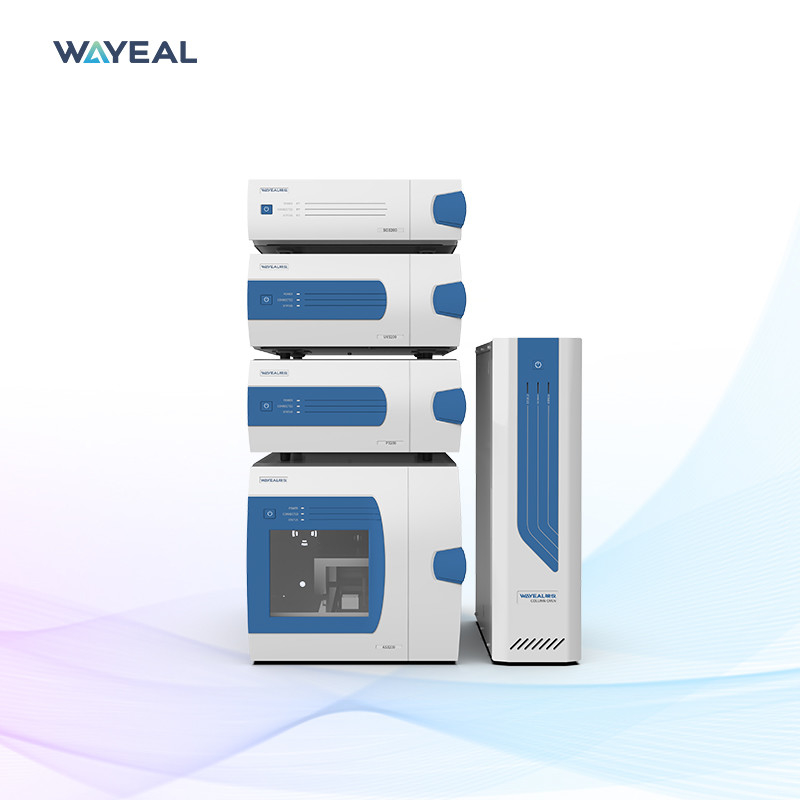

Mesin Kromatografi Cair Kinerja Tinggi HPLC Analitik Laboratorium
Pengantar Instrumen Kromatografi Cair
Kromatograf cair kinerja tinggi (HPLC) adalah instrumen yang didasarkan pada prinsip kromatografi cair kinerja tinggi, yang banyak digunakan di bidang makanan, obat-obatan, lingkungan, pertanian, dan penelitian ilmiah.
Parameter Instrumen Kromatografi Cair
| Produsen: | Wayeal |
| Nama Produk: | Instrumen Kromatografi Cair |
| Catu Daya Kerja | 220V, 50Hz |
| Suhu Lingkungan | 10~40°C |
| Kelembaban Relatif | 20~85% |
| Pengulangan Kualitatif | ≤0.2% |
| Pengulangan Kuantitatif | ≤0.4% |
| Pompa Aliran Konstan Tekanan Tinggi | |
| Rentang Laju Alir | 0.001~10.000mL/min |
| Langkah Pengaturan | 0.001mL/min |
| Rentang Tekanan | 0~45MPa |
| Pulsasi Tekanan | 0.1MPa |
| Kesalahan Pengaturan Laju Alir | ±0.2% |
| Stabilitas Laju Alir | RSD≤0.06% |
| Kesalahan Gradien | ±1% |

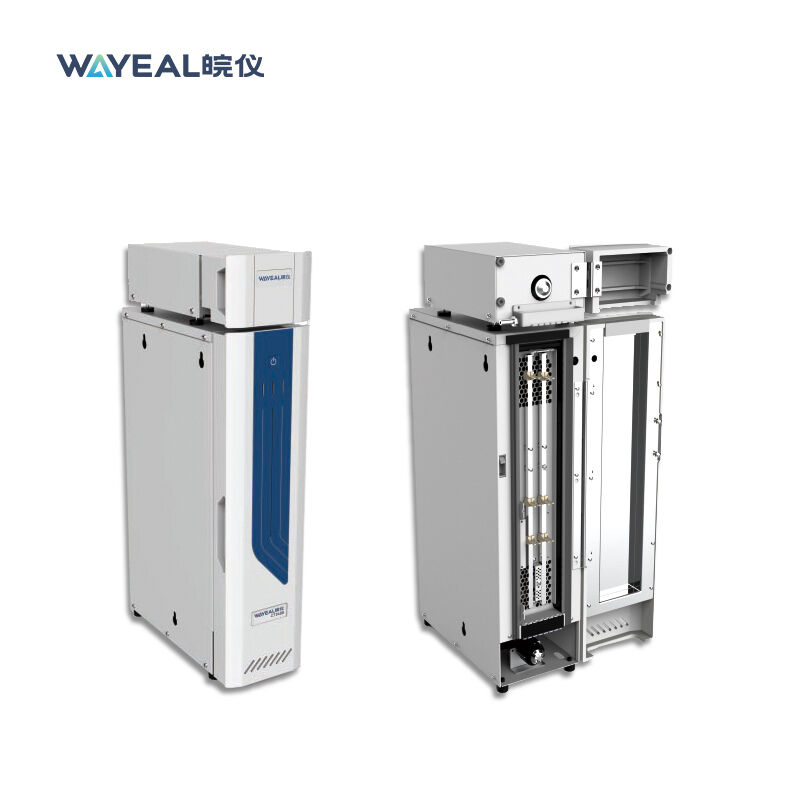

| Oven Kolom | |
| Rentang Kontrol Suhu | 4~85°C |
| Stabilitas Suhu | ±0.02°C |
| Resolusi Pengaturan Suhu | 0.1°C |
| Autosampler | |
| Pengulangan Volume Injeksi | ＜0.5%RSD |
| Linearitas | ＞0.9999 |
| Kontaminasi Silang | ＜0.002% |
| Kesalahan Akurasi Volume Injeksi | ±1% |
| Posisi Sampel | 120 |
| Volume Injeksi | 1~100μL |
| Detektor UV | |
| Derau Latar | ≤2.0*10-6Au |
| Drift Latar | ≤1*10-5Au/h |
| Konsentrasi Deteksi Minimum | ≤3.0*10-9g/mL (naftalena/metanol) |
| Rentang Spektral | 188~900nm |
| Kesalahan Panjang Gelombang | ≤±0.1nm |
| Pengulangan Panjang Gelombang | ≤±0.1nm |
| Rentang Linearitas | ≥103 |
| Detektor DA | |
| Derau Latar | ≤4*10-5Au |
| Drift Latar | ≤3*10-5Au/h |
| Konsentrasi Deteksi Minimum | ≤2*10-8g/mL |
| Rentang Spektral | 190~800nm |
| Kesalahan Panjang Gelombang | ≤±0.1nm |
| Pengulangan Panjang Gelombang | ≤±0.1nm |
| Rentang Linearitas | ≥ 104 |
| Detektor ELS | |
| Derau Latar | ≤ 0.0037mV |
| Drift Latar | ≤ 0.0026mV/30min |
| Rentang Aliran Gas Evaporasi | (0 ~ 3) SLM |
| Rentang Suhu Atomisasi | Suhu Ruangan ~ 90℃ |
| Rentang Suhu Evaporasi | Suhu Ruangan～110℃ |
| Rentang Suhu Ruang Deteksi | Suhu Ruangan～60℃ |
| Tekanan Udara Masuk | (4 ~ 7) bar |
| Detektor FL | |
| Derau Latar | ≤ 5×10-6 FU |
| Drift Latar | ≤ 2 × 10-5 FU/30min |
| Rentang Spektral | (200 ~ 650) nm |
| Kesalahan Panjang Gelombang | ± 0.1 nm |
| Rentang Linearitas | ≥ 104 |
| Detektor RI | |
| Rentang Deteksi | 0.25 ~ 512 μRIU |
| Rentang Linearitas | ≥ 600 μRIU |
| Waktu Respons | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 detik; |
| Volume Sel | 8μL |
Kinerja Kromatografi Cair
1. Desain pemisahan arus utama dan fungsi deteksi sistem yang sempurna untuk memenuhi sebagian besar kebutuhan deteksi
2. Katup periksa tahan asetonitril yang disesuaikan
3. Fungsi pembersihan batang pendorong in-line sebagai standar
4. Kisi impor Prancis 1800l/mm
5. Stasiun kerja kromatografi kontrol terbalik yang sepenuhnya cerdas.
